Decoration Spec Sheet
NF0A5543 The North Face® Ladies Castle Rock Soft Shell Vest

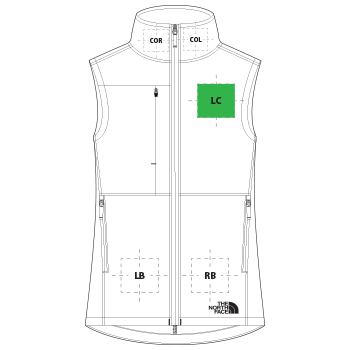

Front Decoration Dimensions
COL Collar Left 2"Hx3"W
COR Collar Right 2"Hx3"W
LB Left Bottom 4"HX4"W
LC Left Chest 4"HX4"W Primary
RB Right Bottom 4"HX4"W
Back Decoration Dimensions
COBC Collar Back 2"Hx3"W
Decoration area is dependent on garment size, decoration method and the equipment being used. Please consult your decorator or supplier.

Decoration TechniquesClick the icon for details

Essential Product Information

Due to the nature of 100% polyester fabrics, special care must be taken throughout the decoration process when heat is applied for curing. Please consult with your decorator or material supplier.

Tips From Our Experts By Decoration Technique

Embroidery

Embroidery is the art of embellishing a piece of apparel with a needle and thread or yarn creating stunning visual representations of various types of art. This is achieved by converting logos in a digitizing software and using various stitch patterns, angles, density and stitch types to create depth, movement and detail. Thread can be made from many materials. The most commonly used threads are polyester and rayon. There are also options such as metallic, cotton, nylon, silk and even Nomex thread for fire resistance. Embroidery has a very high-perceived value and is popular for use on most apparel, bags, hats, luggage, blankets and more!

In order to maintain waterproof integrity, please consult with your decorator, equipment, and consumable supplier for best practices.

Water Proof/Coated Fabric with bonded barrier- 65/9 or 70/10 coated Sharp Point
Screen Printing

An imprinting method in which the image is transferred to the fabric. Ink is squeegeed through a stenciled screen stretched over a frame and then cured in a dryer.

Low-cure poly inks are required. Grey or black bleed blockers may be necessary.
Heat Transfers

A graphic, name and or number applied to a textile with a heat press. Great for quantities of any size, sports name and numbering, fashion, performance wear, print on demand programs and on-site decorating events.

Heat transfers with an aggressive adhesive are required for stain release, water resistant/waterproof coated and nylon fabrics. Consult with your transfer supplier for recommendations.
Pad Printing

Pad printing uses a soft silicone pad to transfer an image taken from a plate etched with a reversed logo, similar to a rubber stamp. Images can be very small and detailed and can be up to 5½ inches in diameter. Pad printers are capable of printing up to six colors, however most industry printers use one to two colors at most when printing on apparel. Pad printing is a popular trend for tagless label printing. The prints are soft, durable and capable of high and low volume production. Pad printing is great for sling bags, totes and other items that are difficult to decorate, as well as styles that are heat sensitive.

It is a best practice to consult with your decorator or consumable supplier(s) for accessories,
specialty frames and applications that are specific to a shop's setup and equipment.
