Decoration Spec Sheet

CSJ73 CornerStone^® Soft Shell Shirt Jacket

Front Decoration Dimensions
LC	Left Chest	3"H x 4"W	Primary
RC	Right Chest	3"H x 4"W

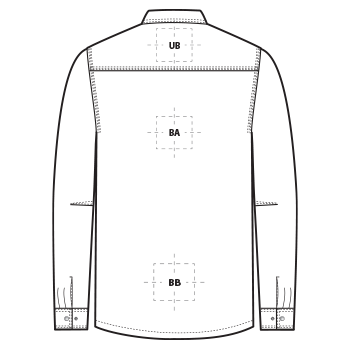

Back Decoration Dimensions
BA	Back	12"H x 12"W
BB	Back Bottom	6"H x 12"W
UB	Upper Back	4"H x 12"W

Sleeve Decoration Dimensions
FSL	Full Sleeve Left	4"H x 14"W
FSR	Full Sleeve Right	4"H x 14"W
LS	Left Shoulder	4"H x 4"W
RS	Right Shoulder	4"H x 4"W

Decoration area is dependent on garment size, decoration method and the equipment being used. Please consult your decorator or supplier.

Decoration TechniquesClick the icon for details

Embroidery

Screen Printing

Heat Transfers

Essential Product Information

Due to the nature of 100% polyester fabrics, special care must be taken throughout the decoration process when heat is applied for curing. Please consult with your decorator or material supplier.

Due to the nature of water resistant coatings, special care must be taken throughout the decoration process. An ink catalyst additive or special adhesive heat transfer is required. Please consult with your decorator or material supplier.

Tips From Our Experts By Decoration Technique

Embroidery

Embroidery is the art of embellishing a piece of apparel with a needle and thread or yarn creating stunning visual representations of various types of art. This is achieved by converting logos in a digitizing software and using various stitch patterns, angles, density and stitch types to create depth, movement and detail. Thread can be made from many materials. The most commonly used threads are polyester and rayon. There are also options such as metallic, cotton, nylon, silk and even Nomex thread for fire resistance. Embroidery has a very high-perceived value and is popular for use on most apparel, bags, hats, luggage, blankets and more!

For better results, Magnetic or Clamp Frames are recommended for stability and max decoration range.
Resealing the back of embroidery on this product to retain waterproof and water-resistant properties is recommended.

Screen Printing

An imprinting method in which the image is transferred to the fabric. Ink is squeegeed through a stenciled screen stretched over a frame and then cured in a dryer.

Test your application process for success prior to all production runs.

Bonding catalysts may be required for stain release, water resistant/waterproof coated and nylon fabrics.
Low-cure poly inks are required. Grey or black bleed blockers may be necessary.
We recommend a low cure ink not to exceed 300° during application.

Heat Transfers

A graphic, name and or number applied to a textile with a heat press. Great for quantities of any size, sports name and numbering, fashion, performance wear, print on demand programs and on-site decorating events.

For best results when apply a heat sensitive vinyl transfer – raise the area you will press with a foam pad.
Heat transfers with an aggressive adhesive are required for stain release, water resistant/waterproof coated and nylon fabrics.

Test your application process for success prior to all production runs. Ultra-low cure transfers may be required.

For best results when using heat applied consumables to avoid a color or sheen change, it is recommended to use a protective foam application pad.

It is a best practice to consult with your decorator or consumable supplier(s) for accessories,
specialty frames and applications that are specific to a shop's setup and equipment.
